Catnic Steel Lintels
Catnic lintels are designed to support you throughout every step of your project.
Thermally Broken Lintels
Catnic’s new Thermally Broken Lintel range represents the biggest game changer in steel lintel engineering for a generation. The most energy efficient steel lintel solution on the market.
Catnic lintels are designed to support you throughout every step of your project.
Our lintels expertly meet the aspirations of the architect, withstand the demands of the built environment and accommodate the needs of the contractor. Our free CLASS scheduling service provides all the reassurance you need: a clear description of each lintel, its location, price and delivery
time, together with guaranteed structural adequacy and a site summary.

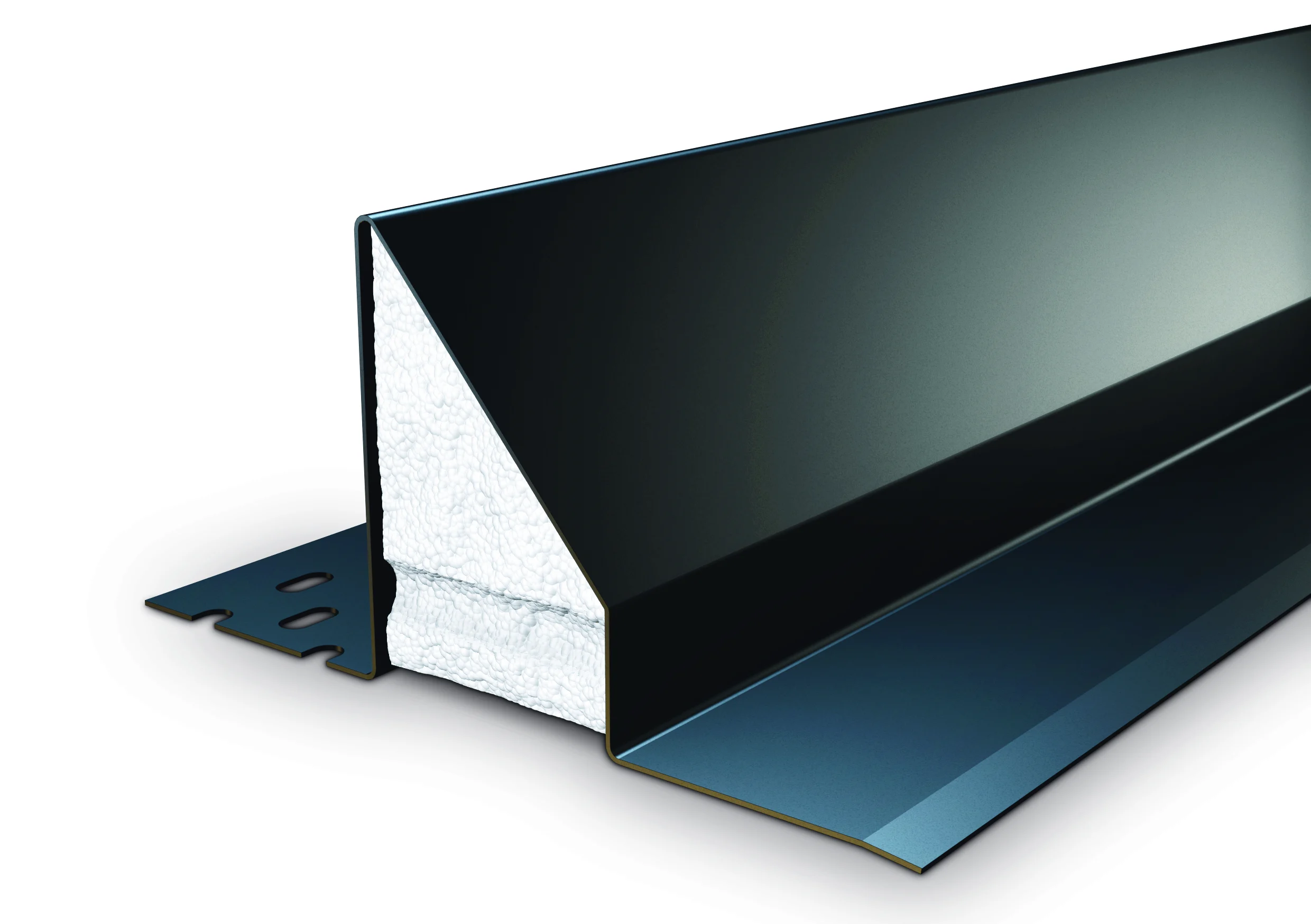

CG
Standard duty cavity wall lintel. Duplex corrosion protection, built-in plaster ket, built-in DPC, integral insulation, cougar open back

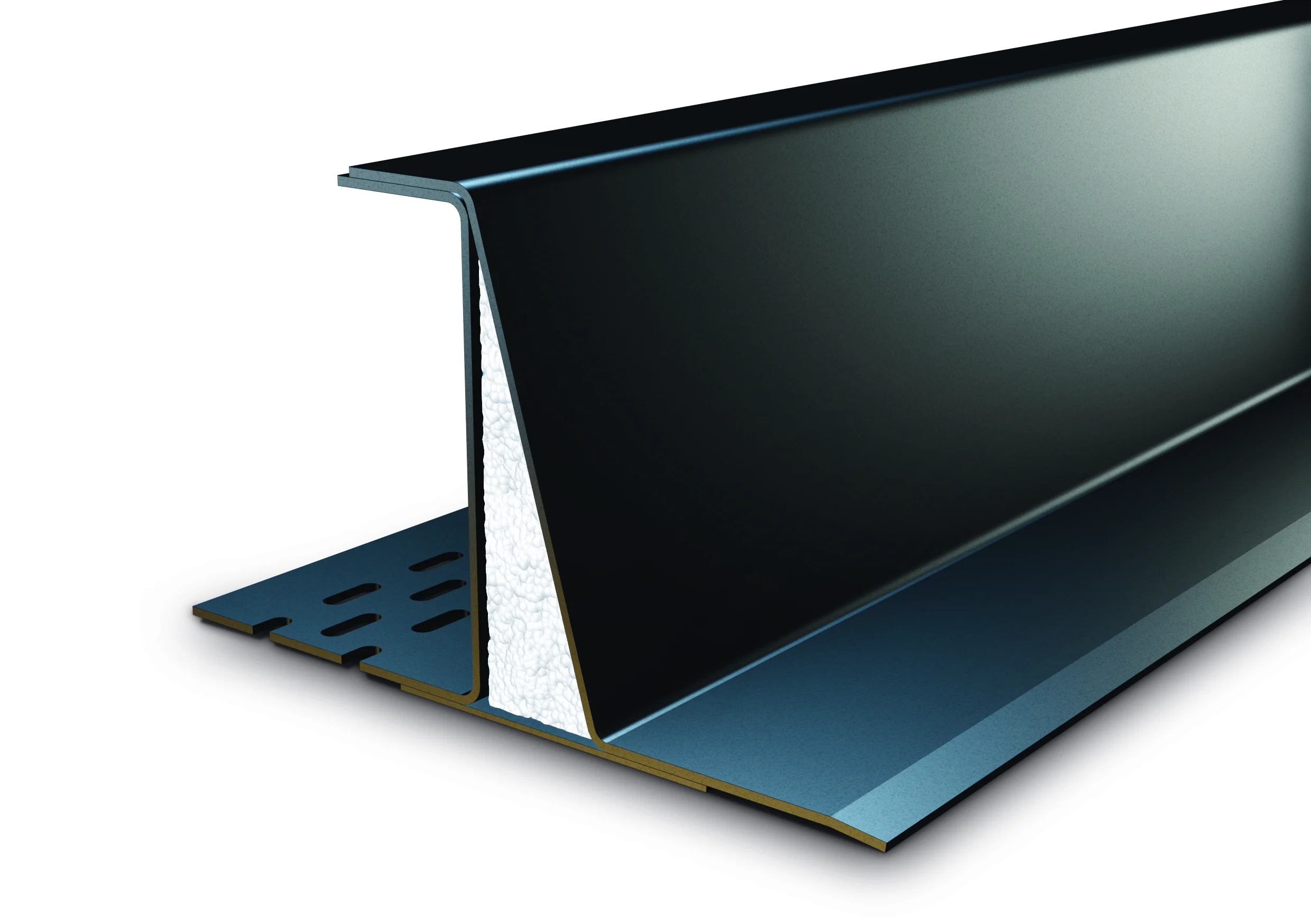

CX
Extra heavy duty cavity wall lintel. Duplex corrosion protection, built-in plaster ket, built-in DPC, integral insulation, open back
CH
Heavy duty cavity wall lintel. Duplex corrosion protection, built-in plaster ket, built-in DPC, integral insulation, open back
CTF
Standard duty lintel for use on timber frame. Duplex corrosion protection, built-in DPC

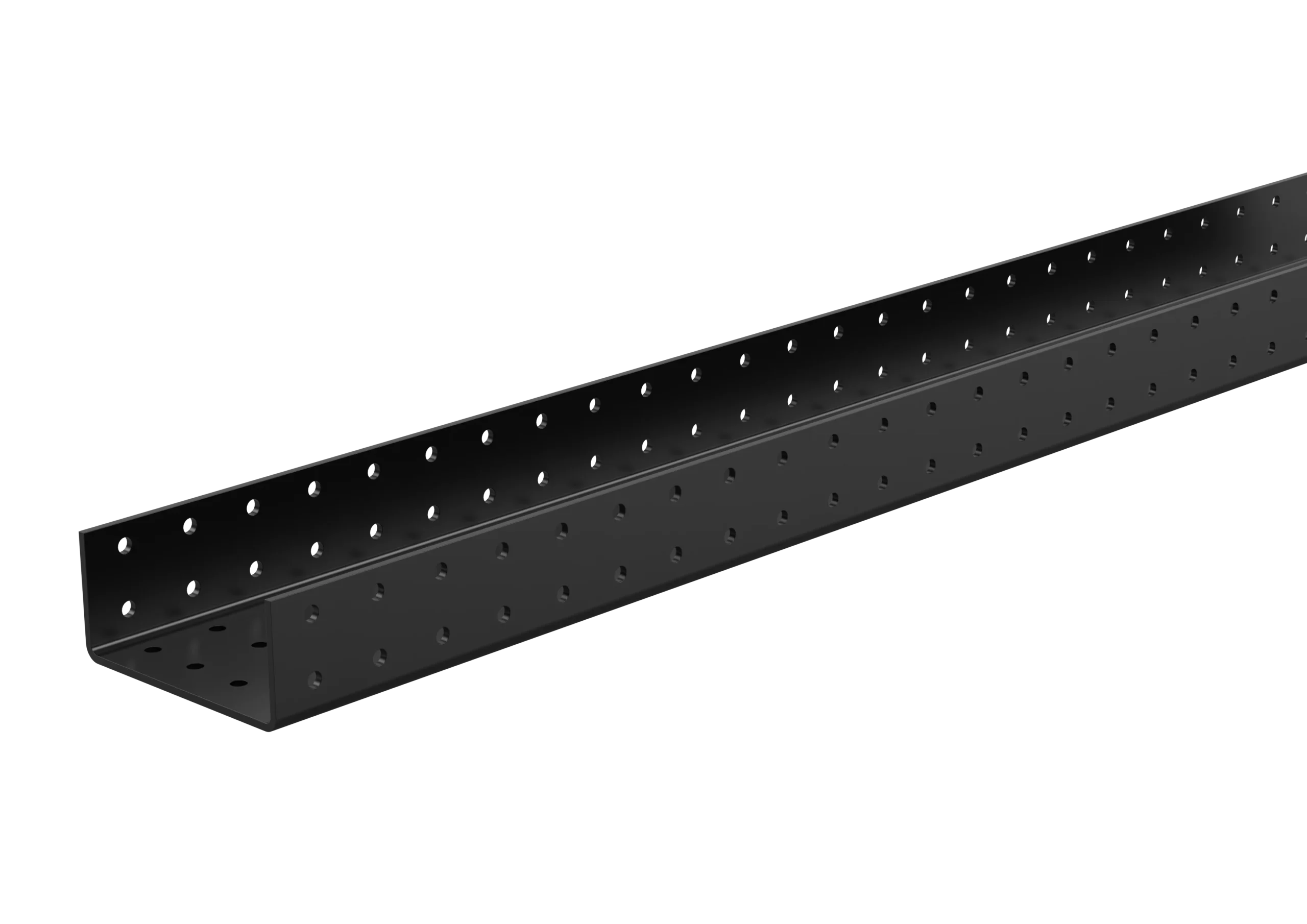

CN100
Light duty lintel for use on internal wall

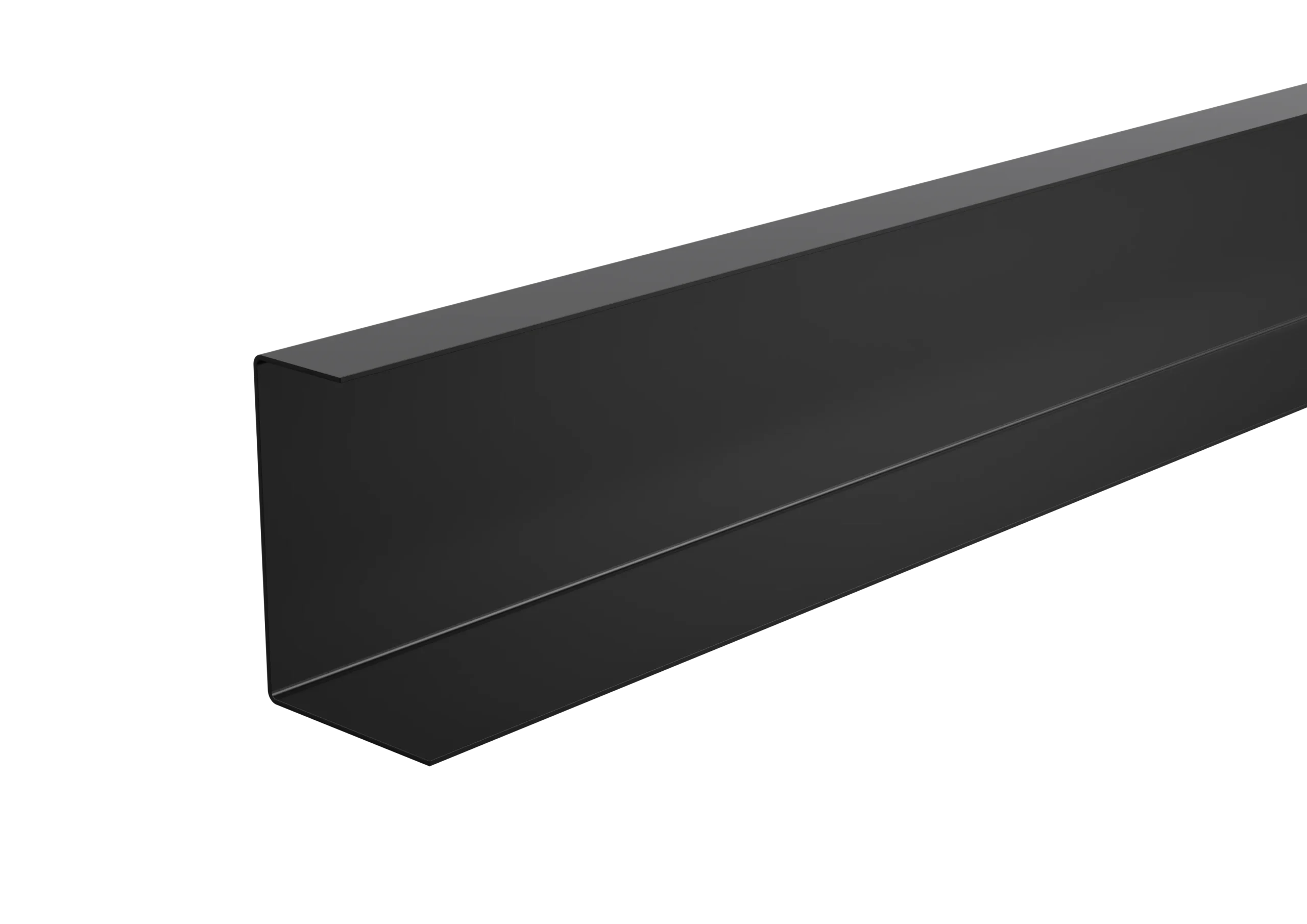

CCS
Standard duty, single leaf wall lintels, duplex corrosion protection system. CCS lintels are fully built in to wall construction for use with single leaf face brick or block walls. Should be suitably propped and laterally restrained during construction

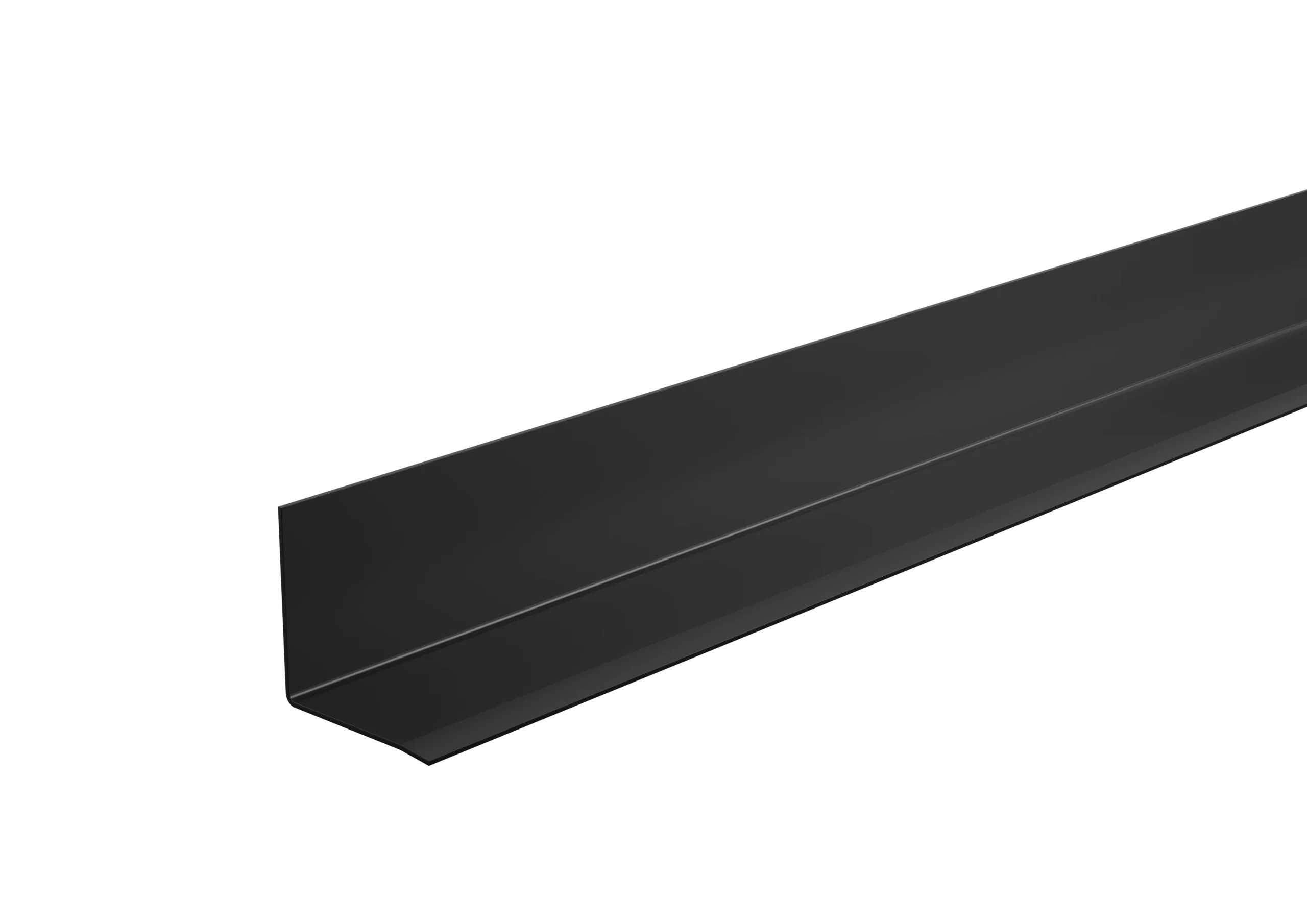

ANG
Standard duty, single leaf wall lintel, angle lintel, loading applications only
TBL
Thermally broken lintels. The unique design enables a complete thermal breakdown between the inner and outer leaf of the cavity wall construction, results in outstanding thermal performance values of Psi value 0.02 to 0.05 W/mK.
Options available to suit cavities from 90 to 165mm, in standard, heavy and extra heavy duty performance categories.

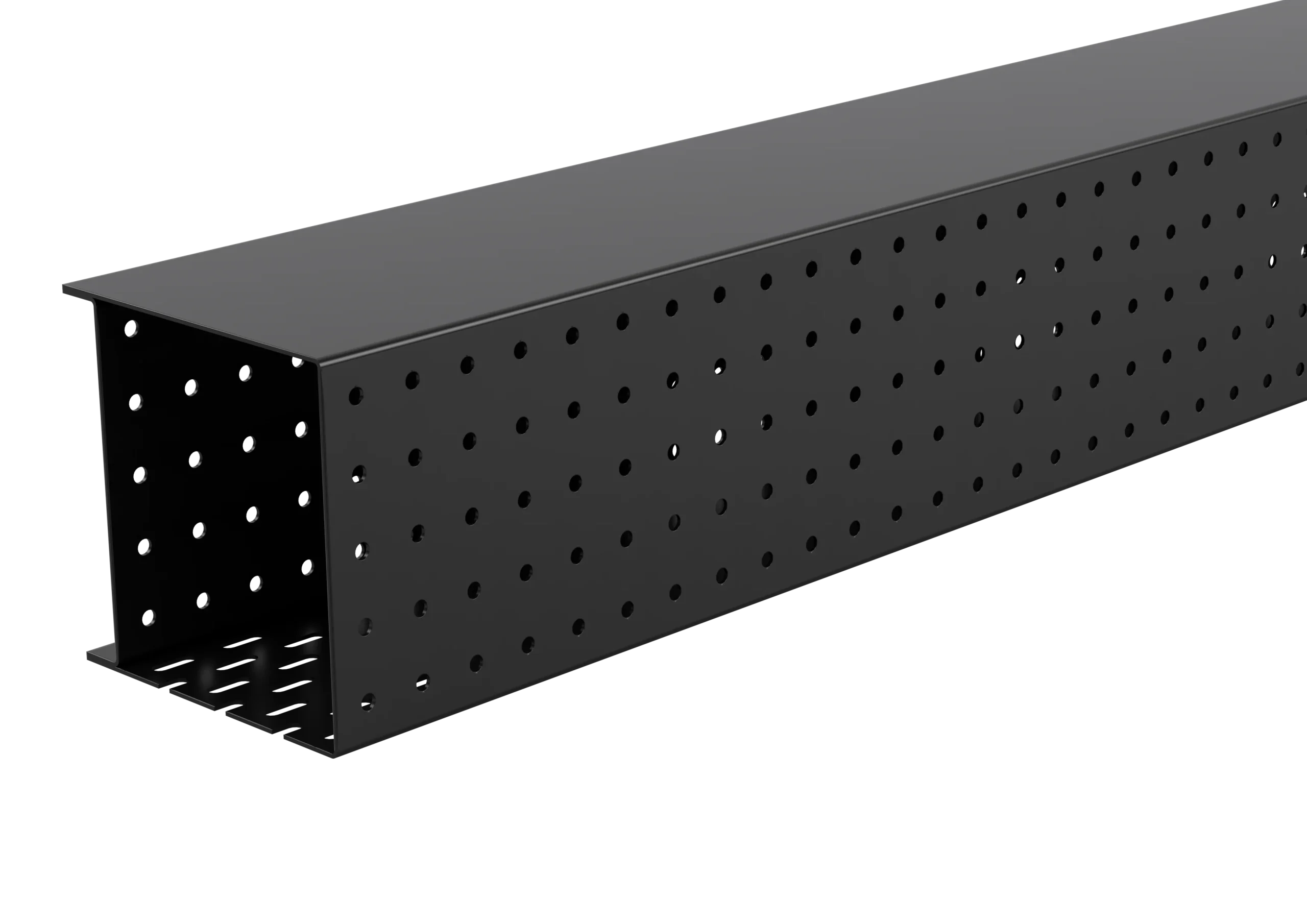

BSD
Standard duty, duplex corrosion protection, built-in plaster key, for interior solid walls – partition and load bearing wall lintel. Direct floor or roof load, supports concrete floor loads, supports point loads
BHD
Heavy duty, duplex corrosion protection, built-in plaster key, for interior solid walls – partition and load bearing wall lintel. Direct floor or roof load, supports concrete floor loads, supports point loads
BXD
Extra heavy duty, duplex corrosion protection, built-in plaster key, for interior solid walls – partition and load bearing wall lintel. Direct floor or roof load, supports concrete floor loads, supports point loads
