IG L1/S 50 Lintel

by | Apr 28, 2026 | Uncategorized | 0 comments

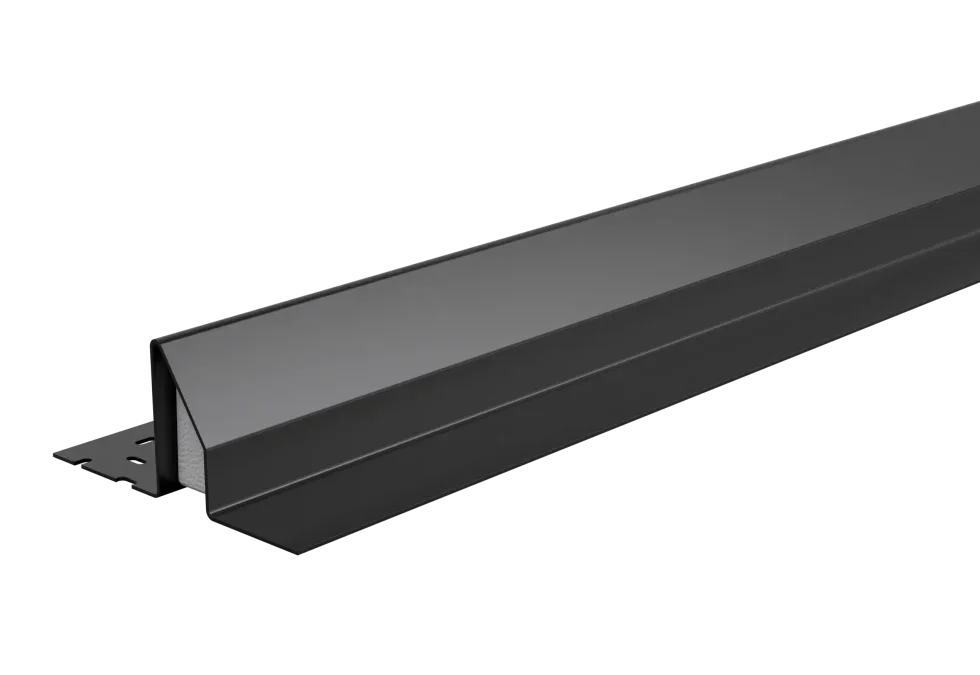

CG 50/100 Cantic Lintel

We do not stock the IG L1/S 50 Lintel. However, we supply the CG 50/100 Catnic Lintel, which is suitable for the same cavity size and can be used as an alternative, subject to appropriate load and span requirements.

Both lintels are designed for 50-65mm cavity wall construction, but there are a few structural and performance differences to be aware of.

Why We Offer the CG 50/100 Instead

We do not stock the IG L1/S 50, the following CG 50/100 Catnic Lintel offers:

  • Proven performance for standard duty applications

  • Integrated insulation to help reduce thermal bridging

  • Built-in DPC profile for moisture protection

  • Duplex corrosion protection system for enhanced durability

  • Reliable performance across typical residential builds

In most situations, the CG 50/100 can be used as a suitable alternative, provided the correct specification is selected based on the project requirements.

Main Differences

Feature IG L1/S 50 CG 50/100 Catnic
Cavity Size 50-65mm cavity 50-65mm cavity
Inner Leaf Typically 100mm block 100mm block
Load Capacity Standard domestic loads Standard duty (subject to span/load tables)
Steel Specification Galvanised steel Galvanised steel with protective coating
Corrosion Protection Standard galvanising Duplex corrosion protection system
Structural Strength Suitable for standard applications Suitable for standard applications
Application Standard house builds Residential construction

Performance & Construction Differences

Load Performance

Both lintels are designed for standard duty applications. The CG 50/100 should be selected in line with Catnic load/span tables to ensure suitability for the specific opening and loading conditions.

Corrosion Protection

Catnic lintels use a duplex corrosion protection system (galvanising plus an additional protective coating), which can provide enhanced durability in certain environments compared to standard galvanised finishes.

Structural Design

The CG 50/100 is engineered to provide consistent load bearing across typical openings when installed in accordance with manufacturer guidelines.

Thermal Performance

Both lintels are designed to minimise thermal bridging within cavity walls. The CG range includes integrated insulation to help meet modern building regulation requirements.

If you’re unsure about load requirements or span suitability, please contact us
